Electrodeless Discharge Lamp

Product name: circular lvd lamp
Model: CNC-HF

Features of this circular induction fluorescent lamp:

1) Ring shaped, uniform light output.

2) Wide lighting surface area, comfortable light.

3) Well suited for the round or oval shape lighting fixtures, applied in the indoor, outdoor and decorative lighting environment.

4) Special magnetic hoop structure, effectively avoid magnetic leakage and magnetic core power loss, perfect heat dissipation ability.

5) Special ferrite magnetic core, maintain the magnetic core inductance stable in wide temperature range; unique B-H curve, reduce the magnetic hysteresis loss and magnetic core loss.

6) Amalgam inside, less pollution, eco-friendly.

7) Special amalgam, instant-start and stable light output in the wide range of temperature.

8) With special technology, faster power start.

9) Self-developed inert gas formula, ensure the consistency of light efficiency and power.

10) Full range of color temperature, a variety of power options

Specifications of circular induction fluorescent lamp I

Type	Power consumption	Lumen	Pupil luminous flux(Plm)	Size (mm)
				A	B	C	D	E
CNC-HF-40W	45W	2800	3900-4600	170	22	60	42	150
CNC-HF-80W	86W	6400	8600-11100	230	22	70	54	208
CNC-HF-120W	128W	8600	15500-18000	290	22	70	54	270
CNC-HF-150W	160W	12000	19500-22000	290	22	70	54	270
CNC-HF-200W	212W	16000	28000-30000	320	30	80	58	300
CNC-HF-300W	316W	24000	45000-48000	400	30	80	58	380

Lamp Voltage: 230-305V/60Hz(277V), 175V-265V/50Hz(220V),

90V-140V/60Hz(120V), 305V-385V/60Hz (347V)

(DC12V/24V is available for 40W)

Working Frequency: 230KHz

Power factor: ≥0.98 (40W:≥0.95)

Light Decay: 5% (2000 hours)

THD:≤10%

Start-up time: ≤1 second

Work tempereture: -25 to 50℃

Color rendering index: 80

Color Tempereture: 2700-6500K

Specifications of circular induction fluorescent lamp II

Type	Power frequency(Hz)	Ballast input voltage(V)	Ballast input current(A)	Outer packing demension(mm)
CNC-HF-40W	60	277	0.17	422x214x611
	50~60	220	0.21
	60	120	0.38
	60	347	0.13
CNC-HF-80W	60	220	0.32	550x278x661
	50~60	120	0.40
	60	277	0.73
	60	347	0.25
CNC-HF-120W	60	220	0.47	644x335x661
	50~60	120	0.59
	60	277	1.09
	60	347	0.38
CNC-HF-150W	60	220	0.59	644x335x661
	50~60	120	0.74
	60	277	1.36
	60	347	0.47
CNC-HF-200W	60	220	0.78	744x375x611
	50~60	120	0.98
	60	277	1.80
	60	347	0.62
CNC-HF-300W	50~60	220	1.47	890x460x719

Packing of circular induction fluorescent lamp:

Type	Inner box size (cm)	Kgs/Inner box	Case size(cm)	Pcs/case
CNC-HF-40W	20*20*11.6	0.65	67*45*45	20
CNC-HF-80W	26.5*27*12.5	0.9	70*61*61	20
CNC-HF-120W	32*32*12.5	1.15	71*71*39	10
CNC-HF-150W
CNC-HF-200W	36*36*12.5	1.4	72*79*43	10
CNC-HF-300W	44*44*14	1.9	75*51*51	5

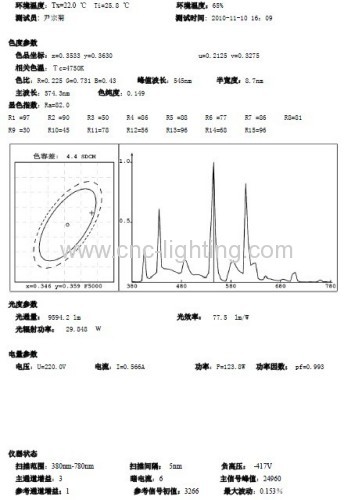

 Test Report of 120W Circular Induction Lamp:
