90W E40 LED Highbay Lamp

Product name: 90W E40 led highbay lamp

Model Number: CNC-HB-R90

-----90W E40 LED Highbay Lamp

Approval: FCC,CE,RoHS

LED brand: Epistar

LED driver: Internal

Product sizes:

Lux Readings at different height and beam angle:

Lamp power	Beam angle	Mounting height	Average Illumination(lux)	Illumination area(Square Meters)
90W	30°	8M	662Lux	￠4.6M*16.6M
		9M	518Lux	￠5.2M*21M
		10M	431Lux	￠5.7M*25M
		11M	364Lux	￠6.2M*30M
		12M	303Lux	￠6.8M*36M
	60°	8M	155Lux	￠9.5M*70M
		9M	122Lux	￠10.7M*89M
		10M	100Lux	￠11.8M*109M
		11M	83Lux	￠13M*132M
		12M	69Lux	￠14.2 M*158M
	90°	8M	37Lux	￠19.4M*295M
		9M	29Lux	￠21.8 M*373M
		10M	24Lux	￠24.2M*459M
		11M	20Lux	￠26.5M*551M
		12M	16Lux	￠29 M*660M

Specifications:

Model	Size (diameter*height)	N.W	Power	MH lamp replacement			LED Qty	Lumen (@6500K)
				CFL /MH	Halogen	Mercury /HPS
CNC-HB-R90	350*250mm	3.7kg	90W	300W	350W	600W	1540pcs	12000 Lm

Base: E39/E40

Input Voltage: 85~130VAC, 180~260VAC, 50/60Hz

12Vdc is available for solar power system

LED Efficacy: >133Lm/W @25 ℃

LED Viewing Angle: 30°, 45°, 60 °, 75°, 100 °

Color temperature: 3000-3500K(warm white), 6200-6800K(pure white), >9000K(cool white)

Working temperature: -30 to +65degree

CRI:>80Ra
Power factor: >0.91

Lifetime:50,000+hours


Application: warehouse, workshop, gas station, toll station, railway station, exhibition hall etc.

Replacement instruction for different traditional lights: (based on similar brightness)

Annual Power consumption comparison: (suppose daily light on 12hours):

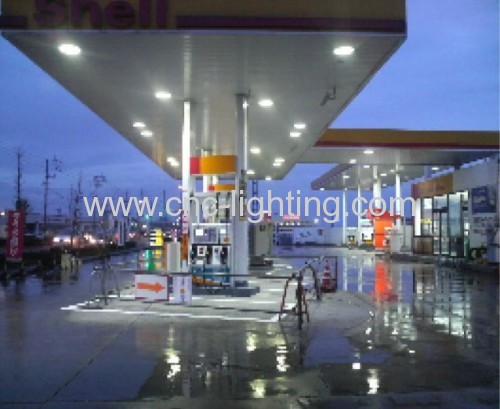

Application of this Screw LED Highbay Lamp:

    90W E40 LED Highbay Lamp has been presented above, want more similar products, please click Retrofit led highbay lamp,E40 led highbay bulb,Retrofit led highbay bulb.
    Our 90W E40 LED Highbay Lamp is good in quality and competitive in price. We manufacture 90W E40 LED Highbay Lamp and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
