60W, 80W COB Led Tunnel Light Description
Product name: Modular led tunnel light
Model: CNC-TL-06
----60-80W COB LED Tunnel Light Fitting
----60-80W COB LED Tunnel Light Fitting
This LED Tunnel Light source adopts integrated high-power LED. Light body with high-quality aluminum, patented with cooling body design, and tempered glass sealed cover, cooling the surface of the anodic oxidation treated with preservatives. Perfect combination of unique cooling design and power box. Rational use of movement in all directions from the air, effectively the proliferation of heat conduction, thereby reducing the body temperature of light, which make sure lamp-house and power supply`s life span at the best temperature environment. Electronic part adopts the constant current constant voltage control. Applied voltage width (AC85-265v) overcome the power generated by ballast, noise pollution and instability caused by the lights and avoid eye`s stimulated, fatigue from work.
----Back view of 60W-80W cob led tunnel light with hanger
Product sizes of this COB LED Tunnel Floodlight:

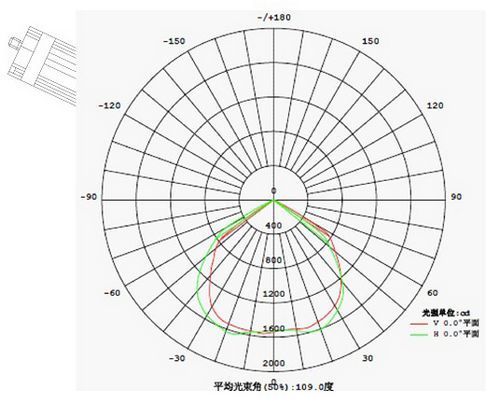

Photometric of this COB LED Tunnel Floodlight:
Specifications:
Power: 60W, 80W
Power efficiency: >90%
Input voltage: AC85-265V
Frequency; 50-60Hz
Luminous efficiency: 80lm/w
Initial Luminous Flux:
60W: 4500Lm (warm white) / 4800Lm (Cool white)
80W: 6100Lm (warm white) / 6400Lm (Cool white)
Color temperature: 2700K~ 7000K
Beam angle: 75degree
IP grade: IP65
Power factor: >0.9
CRI: >80
Life span: >50000Hours
Packing size: 440(W)x300(L)x330(H)mm
Product weight:
60W: 7.3Kg
80W: 11.2Kg
Back view of this COB LED Tunnel Light:
-----back view of 60W-80W cob led tunnel light with standBack view of this COB LED Tunnel Light:
----Back view of 60W-80W cob led tunnel light with hanger
Product sizes of this COB LED Tunnel Floodlight:
Photometric of this COB LED Tunnel Floodlight:

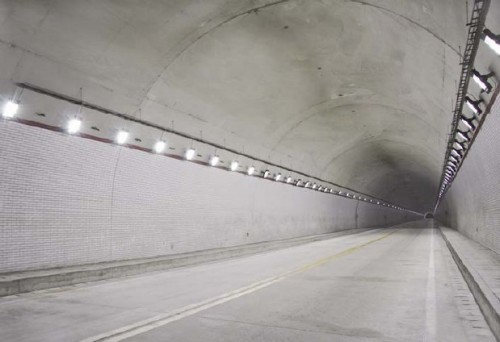

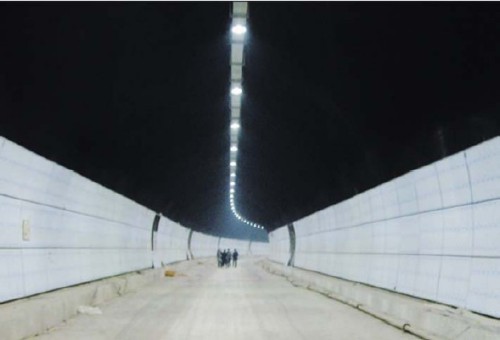

Application of this COB LED Tunnel Floodlight:
Tunnel, toll station, gas station, exhibition hall, gymnasium and other illumination places.
60W, 80W COB Led Tunnel Light has been presented above, want more similar products, please click High power led tunnel light,Modular led tunnel light,Modular led tunnel luminaire.
Our 60W, 80W COB Led Tunnel Light is good in quality and competitive in price. We manufacture 60W, 80W COB Led Tunnel Light and supply OEM, ODM service according to your requirement.
If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
