30-100W COB led high bay light

Product name: COB led highbay light
Model: CNC-HB-02

----COB LED Highbay Light in black finish with 120degree reflector


----COB LED Highbay Light in silver finish with 120degree reflector

Power supply: Meanwell
LED Chips: Brdgelux, 45Mil
Option: black or silver finish



Specifications:

Power	LED consumption	System consumption	Initial Flux	Mounting height	Average Illuminance	Illuminance Area	Weight	Product sizes in mm
								A	H	￠
30W	30W	35W	2700-2970Lm	4M	20Lx	￠11M	3.3Kg	65	371	500
				6M	11Lx	￠17M
				8M	6.3Lx	￠22M
50W	50W	56W	4500-5000Lm	6M	141Lx	￠4.5M	3.7Kg	80	386	500
				8M	78.2Lx	￠5.9M
				10M	51 Lx	￠7.8M
80W	80W	88W	7200-8000Lm	4M	52.3Lx	￠11M	4.8Kg	135	441	500
				6M	25.8Lx	￠17M
				8M	14.6Lx	￠22M
100W	100W	110W	9000-10000Lm	4M	58.9Lx	￠11M	5.25Kg	160	446	500
				6M	29.8Lx	￠17M
				8M	16.6Lx	￠22M

Color temperature: Warm white(2700-3200K), Pure white(5500-6000K),

Cool white: (6500-7000K)

Input voltage: 85-265Vac

Frequency range: 50-60Hz

Total Harmonic Distortion(THD): less than 9%

Power Factor: PF>0.9

Power efficiency: >85%

Lamp efficiency: >90%

Working Voltage: DC30-36V

LED qty: 1pc

LED luminous Efficiency: 100-110Lm/W

Illuminance Uniformity: >0.8(120W), >0.5(150W,200W),

Color rendering index: Warm white: Ra>78

Pure white and Cool white: Ra>85:

Junction Temperature: less than 75℃

Working temperature: -40℃ ~ +50℃

Storage Temperature: -25℃ ~ +65℃(25℃ the best)

IP Grade: IP65

Working Life Span: 50000Hours

Wire connection: Brown for Live wire, Blue for Null wire, Yelow or Green for Ground wire.

Color finish of lamp shell: Silver or Black for option

Beam Angle: 120degree

Certificate: CE, Rohs

Warranty: 3Years

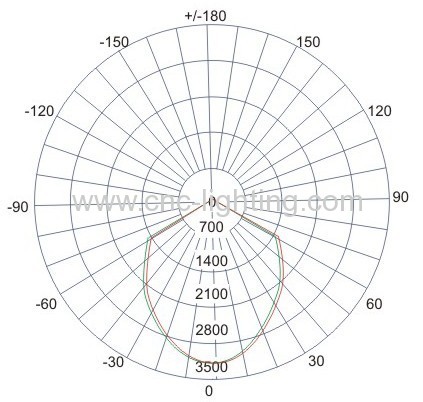

Light distribution curve of this COB LED High Bay Light:

-------light distribution curve of 30W COB LED Highbay Light


-------light distribution curve of 50W COB LED Highbay Light


-------light distribution curve of 80W COB LED Highbay Light


-------light distribution curve of 100W COB LED Highbay Light

    30-100W COB led high bay light has been presented above, want more similar products, please click modular led pendant light,modular led highbay light,modular led factory light.
    Our 30-100W COB led high bay light is good in quality and competitive in price. We manufacture 30-100W COB led high bay light and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
